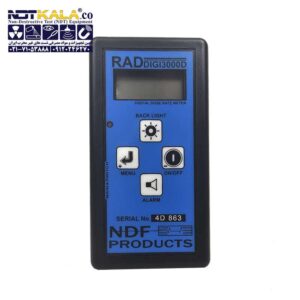

RadDigi 3000C |
| Detector |
GM- LND713 |
| Detection type of radiation |
Gamma, Beta,X |
| Energy Response |
For X and Gamma(40 keV- 2 MeV), For Beta (>0.25 MeV) |
| Gamma Sensitivity (Approx. ) |
450 CPM @10µSv/h |
| Functions Menu (Function modes) |
Dose Rate, Dose, Dose-Time, Reset, Changing Alarm Status |
| Display |
4-digit LCD auto-ranging display with mode indicators. |
| LCD Backlight |
No |
| Dose Rate Range |
0.01 µSv/h to 49.99 mSv/h |
| Linearity of Dose Rate |
7 .0 μSv/h to 19.9 mSv/h – max. ±10%, |
| Display Ranges |
Dose |
0 .01 µSv to 9999 mSv |
| Dose Rate |
0.01 µSv/h to 19.99 mSv/h |
| Dose Time Span |
Up to 200 Hours (HH:MM) |
| Alarm Types |
Visual (LED as well as Indicator on LCD) & Sonic(Beeper) |
| Factory Alarm Settings (Pre-settable on Firmware) |
Dose Alarm |
One threshold level for incremental dose |
| One threshold level for Full dose |
| Dose Rate Alarm |
Four threshold levels |
| Switchable Acoustic Alarm |
By Menu |
| Reset Function |
Hardware (Via Embedded push button on PCB) and Software(Via Menu) |
| Built In Memory |
Nonvolatile.(Retains data including accumulated dose and dose time even without the batteries.) |
| Adjustable Calibration Factor Range |
(±50%) |
| Push Button Functions |
Switch ON/OFF |
Turn the instrument ON/OFF (Front Panel) |
| Menu |
Change the operation mode (Front Panel) |
| Alarm (Front Panel) |
Not Applicable |
| Reset |
Make reset the recorded operation parameters (Inside the case, accessible via the small hole on the behind) |
| Calibration Factor Adjustment |
Adjust Factory preset of calibration factory (embedded on the PCB, the Inside the case) |
| LCD Backlight |
Not Applicable |
| Upgradable Firmware |
Yes (Version 2.38) |
| Humidity Resistance |
Yes |
| RF Shield |
Optional |
| Power Supply |
2 X 1.5 Volts AA size (Alkaline battery) |
| Low Battery Detection |
Indicator on LCD Panel |
| Battery Life (With Alkaline Battery.) |
More than 1500 hours operation with Buzzer off condition @ 10µSv/h field |
| Housing Dimensions (mm) |
L135 x W70 x Thick 25 |
| Weight Including Batteries (Approx.) |
160grams (Without batteries) |
| Accessories |
Leather Bag |
| Company Support |
1 Year Warranty- 5 years After sales service |
